TV600 High Precision CNC Drilling Tapping Machining With CE
Product Description
CNC drilling tapping machines are widely used in industries like automotive, aerospace, electronics, and construction for producing high-precision threaded holes and drilling operations. They excel in machining materials such as metals, alloys, and plastics for parts like engine blocks, circuit boards, and industrial fittings. With high-speed automation and accuracy, these machines boost productivity in both mass production and custom manufacturing applications.

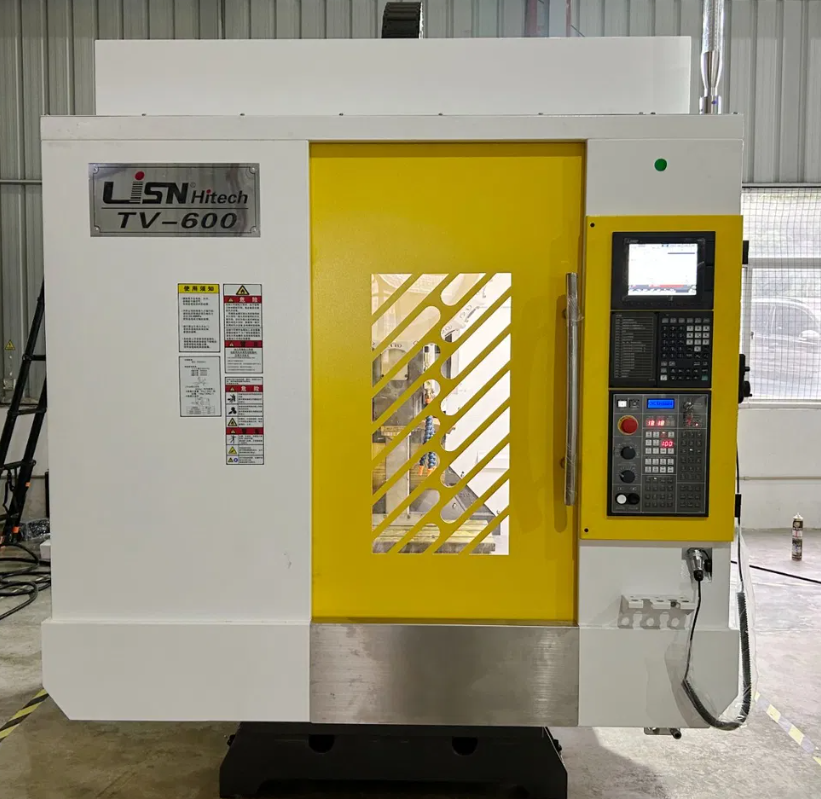

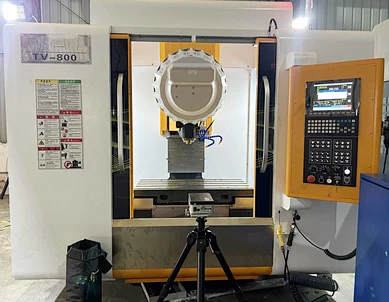

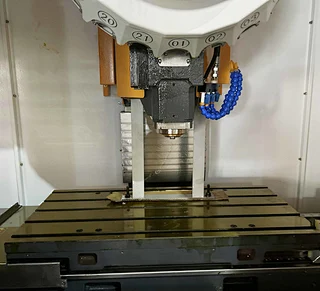

Detailed Photos
Product Parameters
Item | Specifications | Unit | TV500 | T600 |
Travel Range | X/Y/Z Axis Travel | mm | 500/400/300 | 620/420/330 |
Distance From Spindle Nose To worktable | mm | 130-450 | 150-480 | |
Worktable | Worktable (Width XLength) | mm | 650 X400 | 700x420 |
Max Load Bearing Of Worktable | kg | 200 | 250 | |
T-Slot（number of SlotxSlot WidthxPitch) | mm | 3 x 14 x 125 | 3x14x120 | |
Spindle | Spindle Hole Taper | type | BT30 | BT30 |
Spindle Speed Range | rpm | 20000 | 20000 | |
Feedrate | X/Y/Z Rapid Feed Speed | m/min | 48/48/48 | 48/48/48 |
Max Cutting Feed Speed | mm/min | 1-8000 | 1-8000 | |
| Tool Magazine | Tools Magazine Capacity | pcs | 21 | 21 |
Accuracy | X/Y/Z Position Accuracy | mm | ±0.005/300 | ±0.005/300 |
Machine Dimension | Machine Dimension | mm | 1930x2450x2450 | 1930x2450x2450 |
Machine Weight | kg | 3000 | 3000 |
Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at
