Stable Multi-Function Precision Surface Grinder Milling Machine M-618
M-618
Quantity
Product Description
1. The ball track of the workbench is made of steel, with high-precision steel balls, wear resistance, light movement and high efficiency. The manual worktable is driven by synchronous drive with high stability.
2.The front and rear slideways are closely chipped to ensure smooth sliding, wear resistance, good accuracy and flexible and convenient operation. The manual worktable is driven by synchronous belt, which is durable.
3.Surface grinder is suitable for machining parts of machinery, steel, new energy, aerospace, ship, large and medium-sized.
Main Feature
- Excellent stability
- Excellent rigidity
- High flexibility
- Milling head can turn around 90°, 45° before and after rotation
- Equips manual oil pump
Product Parameters
| Parts | ITEM | Unit | M-618 |
General Capacity | Table Size | mm | 150*457(6*18) |
| Max .Grinding Length | mm | 475(18-3/4) | |
| Max .Grinding Width | mm | 160(6-1/3) | |
| Distance From Table Surface To Spindle Center | mm | 350-400(13.8-15.7) | |
| Standard Magnetic Chuck Size | / | 150*400(6*16) | |
Cross Traverse Feed | Manual Trave | mm | 485(19) |
Longitudinal Movement | Manual Trave | mm | 180(7) |
| Handwheel Per Graduation | mm | 0.02(0.001) | |
| Handwheel Per Revolution | mm | 5(0.2) | |
Vertical Downfeef | Handwheel Per Graduation | mm | 0.005(0.0002) |
| Handwheel Per Revolution | mm | 1(0.05) | |
Grinding Wheel | Wheel Size (Dia.*Width*Bore) | mm | 180*16*32(7*2/3*11/4) |
| Spindle Speeds (60HZ/50HZ) | rpm | 3600/3000 | |
Motor | Spindle Motor | HP | 1/1.5/2 |
| Weight | Net | kgs | 750 |
Packing Size | (Length*Width *Height) | mm | 1550*1150*1980(55*45*78) |

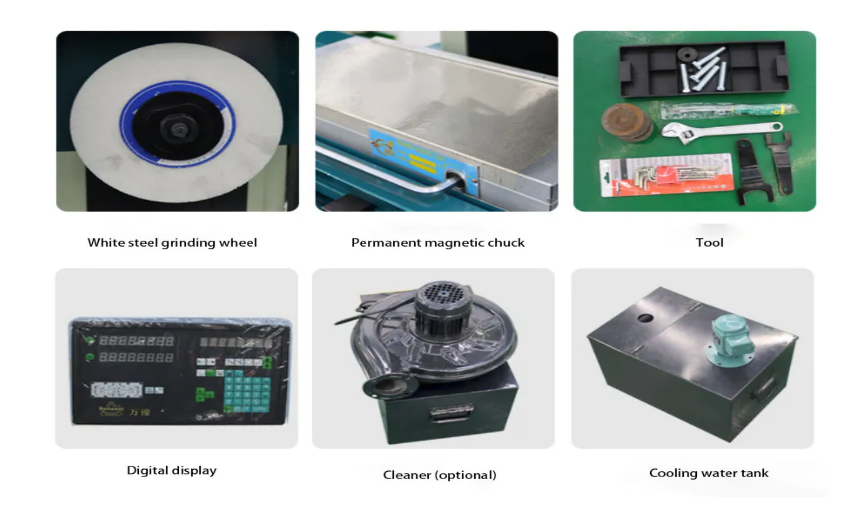

Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
