High Quality HMC1270 CNC 3/4/5 Axis used horizontal milling machines
HMC1270
Quantity
Product Description
Used horizontal milling machines are highly sought after in industries like automotive, aerospace, and heavy equipment manufacturing. Known for their durability and ability to handle large, heavy workpieces, they excel at machining parts like gears, shafts, and housings with high precision. Purchasing used machines is a cost-effective solution for businesses aiming to enhance productivity while minimizing expenses. Ideal for small shops or expanding facilities, they deliver reliability and performance at a competitive price.
Main Features
- Overall rigidity and stability of the machine is excellent
- High performance spindle
- Worktable size: 1380mm*600mm
- Maximum load capability of the worktable: 900kg
- X / Y / Z Axis Travle Distance: 1200mm / 750mm / 720mm
- Maximum cutting feed speed: 1 - 8000RPM
Product Parameters
| Specifications | Unit | HMC 1000 | HMC1270 |
| X/Y/Z Axis Travel | mm | 1700/1030/1030 | 1200/750/750 |
| Worktable (Width xLength) | mm | 1000 x1000 | 1380 x600 |
| Max Load Bearing Of Worktable | kg | 3000 | 900 |
| T Slots | mm | 5x18x110 | 5x18x110 |
| Spindle Speed Range | r/min | 6000 | 6000 |
| Spindle Hole Taper | / | BT50 | BT50 |
| Tools Magazine Capacity | pcs | 24 | 24 |
| X/Y/Z Position Accuracy | mm | 0.008 | 0.008 |
| Machine Dimension | mm | 5430 x6450 x4590 | 3550 x2620 x3270 |

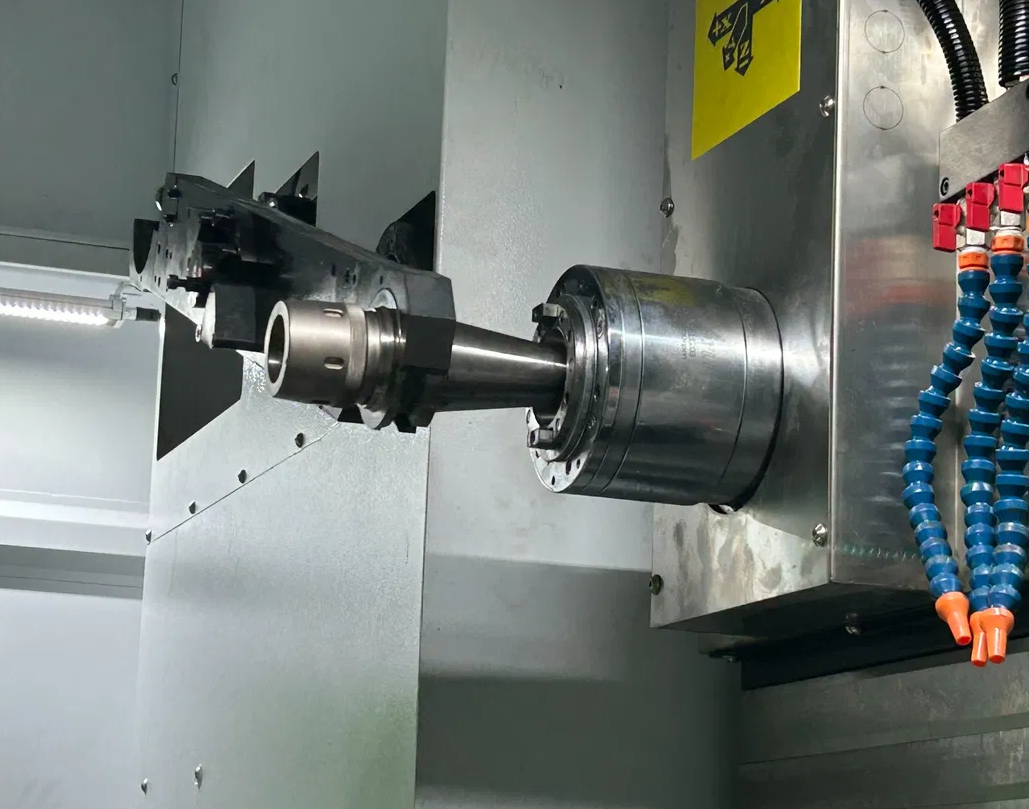

Product Detail
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
