high precision and multifunctiona used vertical machining center vmc960
VMC960
Color
Quantity
Product Description
Used vertical machining centers (VMCs) are widely utilized in industries like automotive, aerospace, mold-making, and electronics for milling, drilling, and tapping tasks.
In the aerospace industry, it manufactures high-precision components like turbine blades and aircraft structural parts. Its ability to handle complex geometries with extreme accuracy is crucial for ensuring flight safety and efficiency. The automotive sector benefits from 4-axis VMCs for producing engine parts, transmission components, and custom fixtures. This enhances vehicle performance and safety.

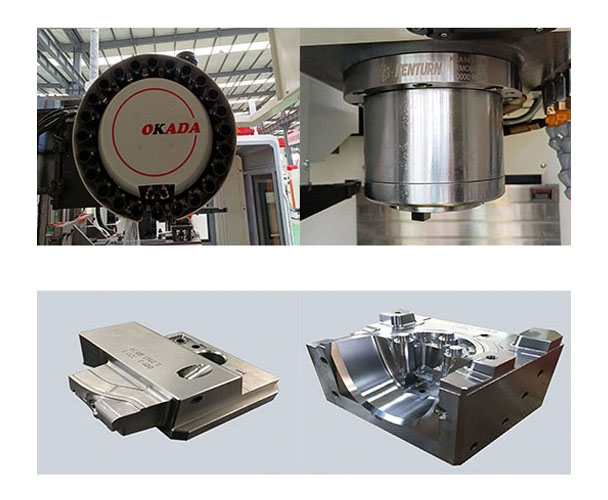

Detailed Photos：
Product Parameters：
Item | Specifications | Unit | VMC850 | VMC960 | VMC1060 |
Travel Range | X/Y/Z Axis Travel | mm | 850/500/550 | 900/600/600 | 1000/600/600 |
| Distance From Spindle Nose To worktable | mm | 320-820 | 120-720 | 70-670 | |
Worktable | Worktable (WidthxLength) | mm | 1000x510 | 1000x600 | 1300x600 |
| Max Load Bearing Of Worktable | kg | 500 | 600 | 800 | |
Spindle | Spindle Hole Taper | type | BT40 | BT40 | BT40 |
Spindle Speed Range | r/min | 8000 | 10000 | 12000 | |
Tool Magazine | Tool Capacity | tools | 24 | 24 | 24 |
Accuracy | X / Y / Z位置准确性 X/Y/Z Position Accuracy | mm | 0.005 | 0.005 | 0.005 |
Machine Dimension | Machine Dimension | mm | 2730x2912x2970 | 2380x2650x2490 | 4500x2750x2600 |
FAQ：
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
