multifunctional high precision turret cnc machine manual mill M4

Manual mills, though overshadowed by CNC counterparts, remain crucial in various industries. They are versatile machines used for cutting, shaping, and forming metal and other materials.

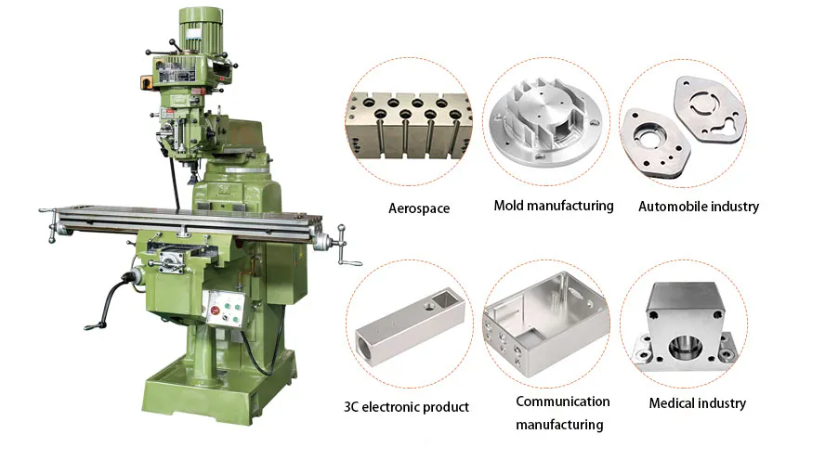

The manual mills In the automotive industry, they create engine components and transmission parts. In aerospace, they machine aircraft components like wing ribs and engine mounts. Manual mills are also widely used in mold and die making, enabling the production of intricate cavities. General machining workshops rely on them for creating fixtures, tooling, and custom parts.

Main Feature

• Excellent stability
• Excellent rigidity
• High flexibility
• Milling head can turn around 90°, 45° before and after rotation
• Equips manual oil pump

Product Parameters

Item	Specifications	MODELS→	M3	M4S	M4H	M5
Travel Range	X /Y Axis Travel	mm	800/400	800/400	800/400	800/400
	Z AxisTravel	mm	480-500	480-500	480	470
	Distance from Spindle center to Machine Body Max/Min	mm	120/700	120/700	120/680	120/810
Worktable	Worktable	mm	254  x 1270 (10''x50'')	254  x 1270 (10'' x 50'')	254  x 1270 (10'' x 50'')	305 x1370 (12'' x 54'')
	Maximum Workpiece Weight	kg	300	300	400	350
Spindle	Spindle Taper	mm	R8/NT30	R8/NT30	R8/NT30	NT40
	Spindle High Speed	r/min	132、220、350、540、1100、1860、2920、4540/60、4200
Motor	Voltage	v	220/380/415	220/380/415	220/380/415	220/380/415
	Frequency	Hz	50/60	50/60	50/60	50/60
	Head Motor	/	3HP	3HP	3HP	5HP
Machine Dimension	Machine Dimension	mm	1670 x1680 x2090	1680 x1680x2090	2000x1680x2150	1770x1780x2300
	Net Weight	kg	1100	1300	1380	1500



Product Details

FAQ

---

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
