DK7735A High Precision small wire edm machine
Product Description
The DK7735A small wire edm machine is a high efficiency wire cutting machine with high precision and rigidity. Small wire edm machineis a set of machine tool electrical appliances, high frequency power supply, servo control and graphics programming as one, to achieve high efficiency, high precision, high finish, simple processing control, greatly improve the processing level of fast wire cutting machine.Flexible commutation with frequency converter is adopted in machine tool commutation, which can arbitrarily adjust the speed of wire conveyor drum, thereby improving the smoothness of workpiece.
EDM (Electrical Discharge Machining) manufacturing is a precision process that uses electrical sparks to erode material from a workpiece. Ideal for hard materials like titanium and hardened steel, it delivers exceptional accuracy and fine finishes.
Main Features
- Select paired clearance-free bearings to improve accuracy.
- Selection of high quality ball screw
- Using steel-inlaid guide rail
- Good assembly process requirements
- By using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpiece
Product Parameters
Item | Specifications |  Unit | DK7735A | DK7745A |
Travel Range | X/Y/Z AxisTravel | mm | 350/450/400 | (450x550)/630/400 |
Control System | CNC System | / | Windows7 | Windows7 |
Worktable | Worktable (WidthxLength) | mm | 720x480 | 830x570 |
Max. Workpiece Thickness | mm | 450 | 450 | |
Max Workpiece Weight | kg | 450 | 550 | |
Spindle | Taper Axis Travel (Ux V) | mm | 60x60 | 60x60 |
Max Cut Taper | mm | 6～15°/100 | 6～30°/100 | |
Feedrate | Max Cutting Speed | mm²/min | ≧300 | ≧300 |
Accuracy | Positioning Accuracy | mm | 0.015 | 0.015 |
Repositioning Accuracy | mm | ±0.008 | ±0.008 | |
Machining Accuracy | mm | 0.015 | 0.015 | |
Machine Dimension | Machine Weight | kg | 1550 | 1850 |

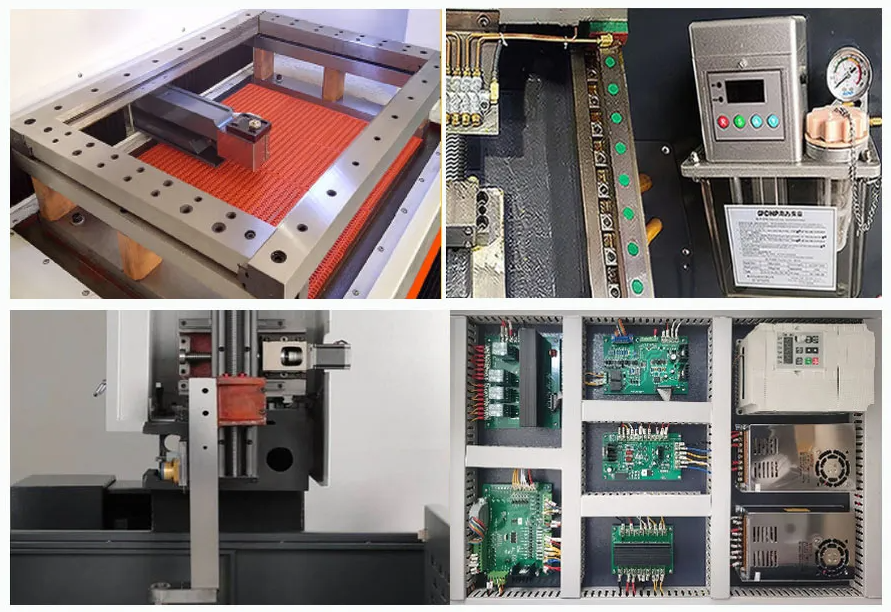

Product Details
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
