What Is a 5-Axis CNC Machine? A Complete Guide to Modern Multi-Axis Machining

A 5 axis CNC machine is an advanced computer numerical control (CNC) system capable of moving a cutting tool or workpiece along five independent axes simultaneously. Compared with traditional 3-axis equipment, 5-axis technology significantly enhances machining flexibility, accuracy, and efficiency—especially for complex, curved, or multi-face components.

Today, 5-axis machining has become essential in aerospace, automotive, medical device manufacturing, mold making, and precision engineering.

How a 5-Axis CNC Machine Works

A standard CNC machine typically operates in three linear directions:

• X-axis – left to right

• Y-axis – front to back

• Z-axis – up and down

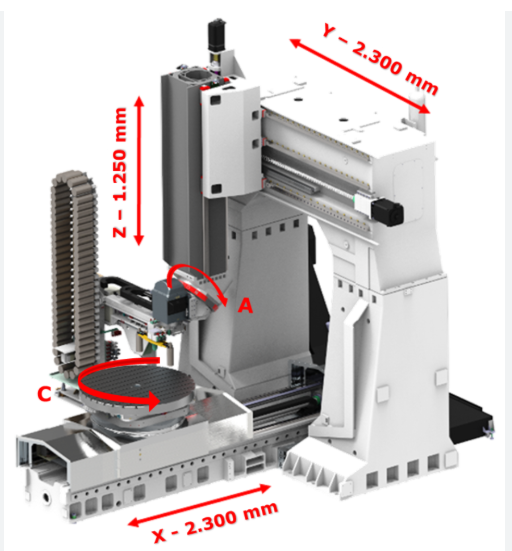

A 5 axis CNC machine adds two rotational axes:

• A-axis – rotation around X

• B-axis – rotation around Y
  (or sometimes C-axis around Z depending on machine structure)

By combining linear and rotary movements, the tool can approach the workpiece from virtually any angle, making high-precision machining of complex geometries possible.

Types of 5-Axis Machining: 3+2 vs. 5-Axis Simultaneous

5-axis machines generally operate in two modes:

1. 3+2 machining (also called positional 5-axis)

2. 5-axis simultaneous machining

Both have unique advantages. Below is a detailed comparison.

1. What Is 3+2 Machining?

3+2 machining means the machine uses two rotary axes to position (tilt/rotate) the workpiece, and then performs cutting using the three linear axes.

Key Features

• Rotary axes are locked during cutting

• Machining is performed using 3-axis interpolation

• Best for multi-face machining with minimal repositioning

Advantages of 3+2 Machining

• Excellent accuracy for multi-side features

• Lower machine cost and simpler programming

• Reduced fixture changes

• Higher rigidity since rotary axes remain static during cutting

2. What Is 5-Axis Simultaneous Machining

5-axis simultaneous machining means all five axes move together at the same time, allowing the tool to continuously follow complex curves or surfaces.

Key Features

• Tool orientation changes dynamically

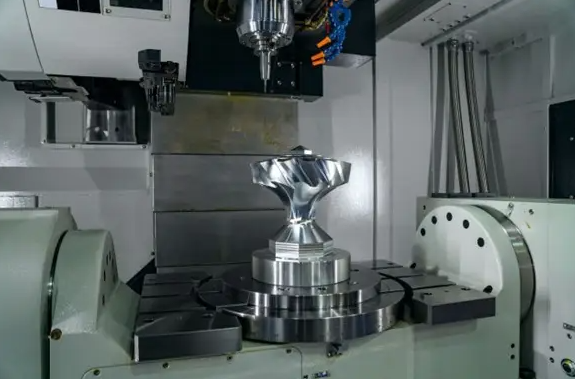

• Ideal for sculpted surfaces, turbine blades, impellers, medical implants

Advantages of 5-Axis Simultaneous Machining

• Highest surface quality on 3D curves

• Shorter cycle time due to continuous movement

• Ability to machine deep cavities and undercuts

• Dramatically reduces or eliminates manual polishing

Comparison: 3+2 vs. 5-Axis Simultaneous

Product Advantages: 3+2axis. 5-Axis Machined Components

3+2axis Machined Product Advantages

• High dimensional accuracy for multi-face parts

• Strong part stability due to fixed rotary axes

• Cost-effective for medium precision requirements

• Ideal for prismatic components needing fewer setups

5-Axis Simultaneously Machined Product Advantages

• Ultra-smooth surfaces for free-form shapes

• Extreme precision for aerospace-grade components

• Ability to machine complex 3D contours in fewer operations

• Reduced tool wear due to optimized tool orientation

• Improved structural integrity with fewer joints or assembly points

Why Choose a 5 Axis CNC Machine?

A 5 axis CNC machine significantly improves a manufacturer’s capability by enabling:

• Faster production cycles

• Higher accuracy with fewer setups

• Improved surface finish quality

• Expanded ability to machine complex geometries

Investing in 5-axis machining helps companies achieve better part consistency, lower production costs, and access industries requiring highly complex components.

Conclusion

A 5 axis CNC machine is a powerful and versatile manufacturing tool that transforms how precision parts are produced. Whether using 3+2 machining for stable and cost-efficient multi-face operations or leveraging 5-axis simultaneous machining for advanced aerodynamic or medical-grade parts, the technology offers unmatched productivity and performance.

Modern manufacturers use 5-axis capabilities not only to enhance product quality but also to stay competitive in industries where precision, speed, and surface finish matter most.
