How to Choose a CNC Machining Center?/cnc machining

1. What Is a CNC Machining Center, and What Products Can It Make?

A CNC machining center is a computer-controlled machine tool equipped with an automatic tool changer. Following a machining program, it switches between milling cutters, drills, taps, and other tools to perform milling, drilling, boring, and tapping operations, turning raw material into parts that meet drawing requirements.

Common products include mechanical brackets, mounting plates, aluminum housings, molds, automotive housings, pump bodies, and hydraulic valve blocks. For example, a machining center can machine the surfaces, pockets, mounting holes, and threaded holes of an equipment housing. Whether the part needs to be repositioned depends on the machine’s axes and workholding arrangement.

Machining centers can process aluminum alloys, steel, stainless steel, cast iron, and certain engineering plastics. Cutting tools and machining conditions must be matched to the specific material grade, hardness, and operation.

2. What Size CNC Machining Center Should You Choose?

Machine size depends on the combined space required by the workpiece, fixture, and cutting tools. Axis travel should not be treated as the maximum allowable part size.

The table below lists published travel specifications for several machine sizes, together with illustrative part dimensions for initial screening. These part dimensions are examples, not manufacturer-guaranteed machining limits.

Machine and Specification Source	X/Y/Z Travel, mm	Illustrative Part Size for Initial Screening, mm	Example Products
LiSN VMC850	850 × 500 × 550	Approximately 600 × 350 × 200	Small housings, brackets, mounting plates
VMC1060	1,000 × 600 × 550	Approximately 750 × 400 × 250	Longer baseplates, equipment connectors
LiSN VMC1160	1,100 × 600 × 600	Approximately 850 × 450 × 300	Medium-sized molds, housings, multiple-fixture setups
VMC1270	1,200 × 700 × 700	Approximately 950 × 500 × 350	Larger mold plates, bases, box-shaped components

Travel specification sources: LiSN VMC850, VMC1060, LiSN VMC1160, and VMC1270.

For each example, you still need to check the load, fixture height, tool length, and clearance for side machining. Machines with the same model designation may also have different specifications across manufacturers.

Material primarily affects the cutting configuration. For aluminum housings, consider operating spindle speed and cycle time. For steel molds, consider hardness, cutting loads, and stability. Higher production volumes may justify multiple-fixture setups or automated loading and unloading; they do not necessarily require a larger machine.

3. Do You Need a Fourth or Fifth Axis?

If repeated repositioning is your main problem, consider a fourth axis or 3+2 machining. If cutting requires continuous changes in tool orientation, evaluate simultaneous 5-axis machining.

Machining Method	Main Difference	Products Worth Evaluating

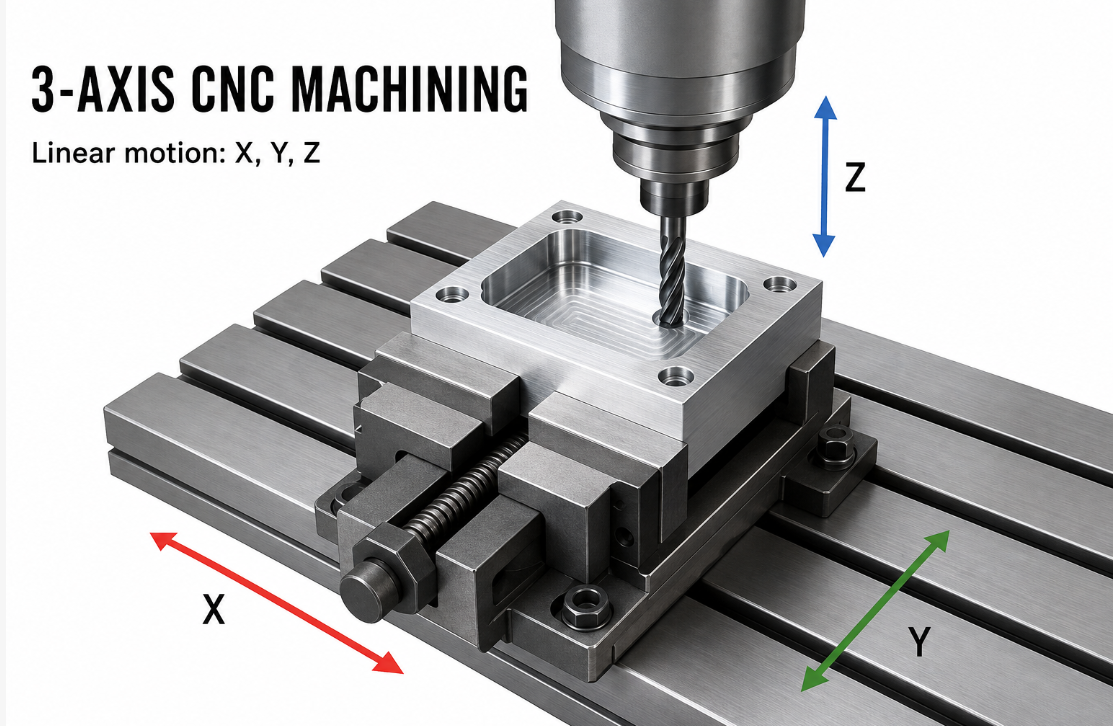

3-axis	Linear movement along X, Y, and Z; machining another side may require a new setup	Plates, brackets, conventional molds

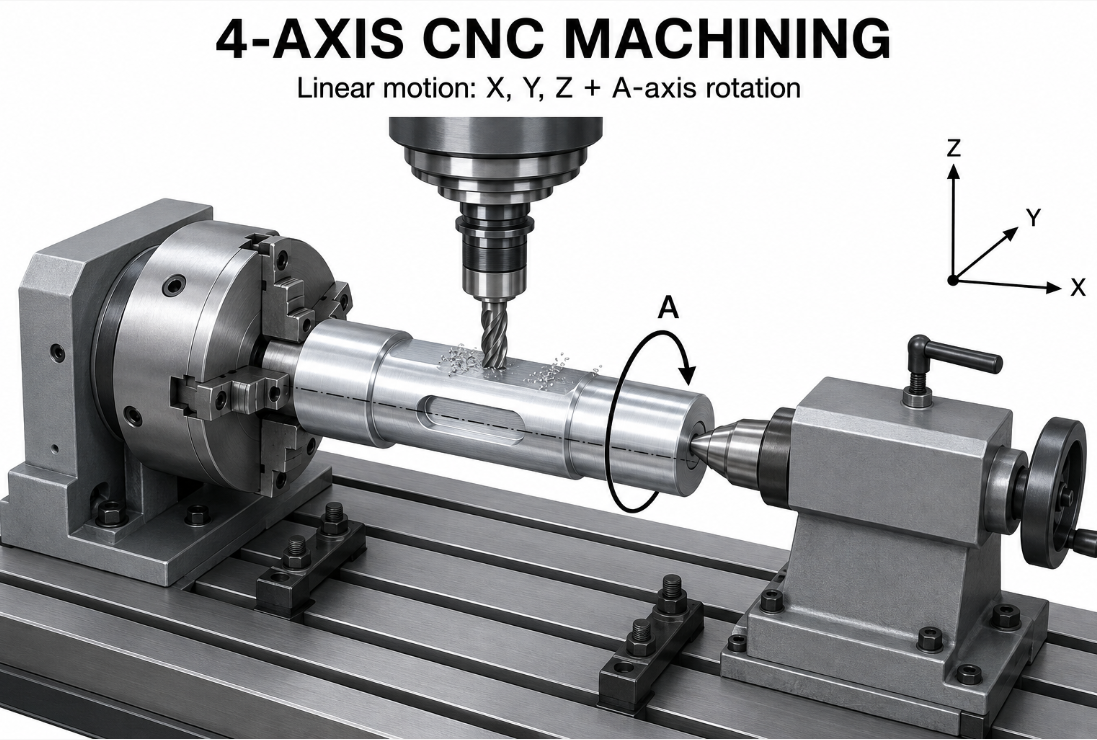

4-axis	Adds one rotary axis for indexing or simultaneous cutting	Parts with circumferential holes, multi-sided connection blocks, side features on shaft-like parts
3+2 positional machining	Two rotary axes position the part or tool before 3-axis cutting begins	Valve blocks with angled holes, multi-sided housings, complex brackets

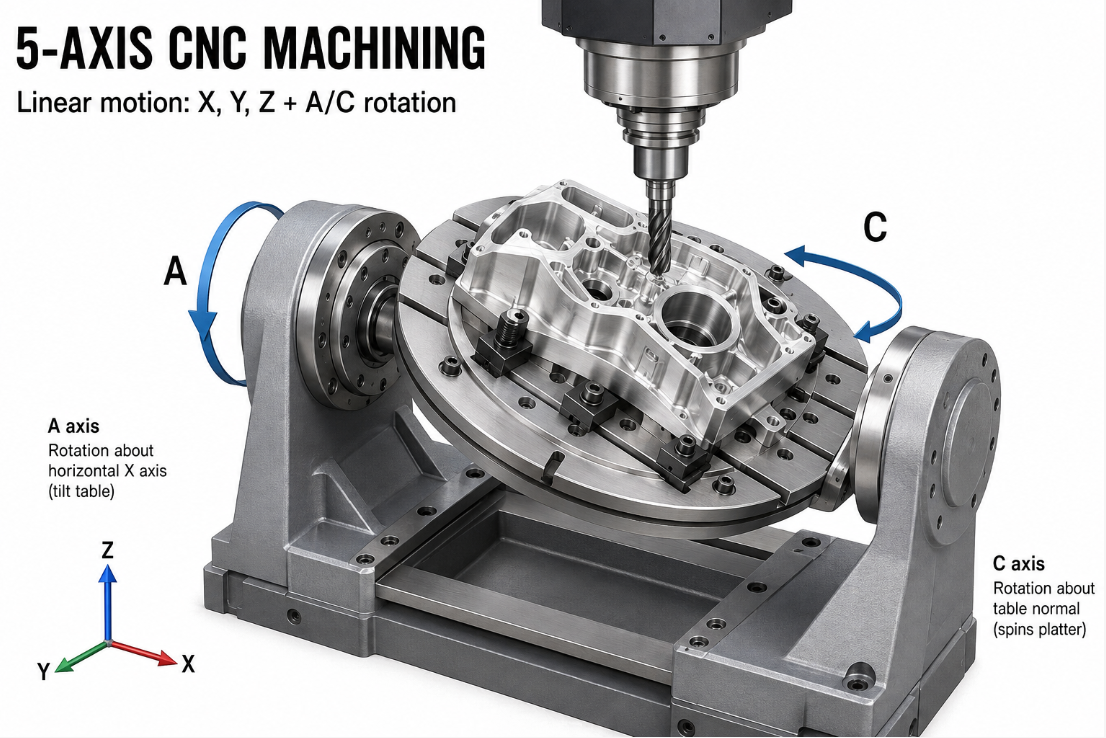

Simultaneous 5-axis	Coordinates linear and rotary movement during cutting	Impellers, blades, and other features requiring continuous changes in tool orientation

Fourth-axis indexing and simultaneous 4-axis machining are different capabilities. Installing a two-axis rotary table does not automatically provide full simultaneous 5-axis capability. Check the control functions, CAM postprocessor, rotary clearance, and clamping capacity. Hurco also explains that many multi-sided parts can be machined using a 3+2 approach.



Adding axes increases the cost of rotary tables, drives, software licenses, and process support. To decide whether the investment is worthwhile, compare these costs with the setup time, labor, and rework it could save.

4. Why Should You Compare Configurations Instead of Price Alone?

Two machines labeled VMC850 may carry different prices because their spindles, guideways, controls, and delivery packages differ.

Comparison Item	What Should You Check?
Machining accuracy	Positioning accuracy, repeatability, test conditions, and actual part-cutting results
Spindle	Maximum speed, torque at operating speed, continuous power, and drive design
Table load capacity	Whether the combined weight of the part, fixture, rotary table, and accessories is acceptable
Guideways	Brand, specific series, size, ball or roller design, and overall machine assembly
CNC control	Brand, model, axis support, licensed functions, and local service
Delivery scope	Whether the tool magazine, chip conveyor, probing, training, transport, and warranty are included

A higher spindle speed does not make every operation faster. Heavy cutting requires particular attention to output at the actual operating speed, and peak power should not be treated as continuous power. Haas spindle information

The guideway brand alone cannot guarantee accuracy. Even within the same brand, different sizes, designs, and assembly conditions affect performance. The most useful comparison is a cutting trial using your representative parts under agreed conditions.

5. How Do LiSN Prices Compare with Other CNC Machining Centers?

The following publicly listed prices were retrieved on September 5, 2026. All amounts are in US dollars. These are purchasing references for different configurations, not a ranking of equivalent machines.

Brand and Product	Public Reference Price	Pricing Scope
LiSN VMC850 fourth-axis product listing	US$27,900–39,000 per machine	Listed as a reference FOB price; confirm the rotary table and control configuration
Lu Young VMC850 3-axis	US$289,000–30,000 per machine	Supplier-listed range; confirm configuration and trade terms
Dalian Rich VMC850	US$39,000 per machine	Listed price for orders of 1–4 machines
Haas VF-2 with specified inventory configuration	US$72,995 per machine	Official inventory promotion with the listed options

Price sources: LiSN, Lu Young, Dalian Rich, and Haas official inventory.

These prices should not be assumed to include taxes and delivery to your factory. They also do not establish which brand offers better value. When comparing LiSN with another machine, align the travel, axes, control, spindle, tool magazine, and service scope before checking freight, taxes, and installation costs.

6. How Should You Choose the CNC Control and Optional Equipment?

FANUC, Mitsubishi Electric, Siemens, and SYNTEC can all be included in your quotation comparison. Availability and supported functions depend on the machine builder’s specific offering.

CNC Control	Purchasing Priorities
FANUC	Specific series, axis functions, compatibility with existing programs, and local repair support
Mitsubishi Electric	Operator experience, CAM postprocessor compatibility, and required machining functions
Siemens	Specific control model, programming approach, and multi-axis capabilities
SYNTEC	Licensed functions, the machine builder’s integration capability, and local technical support

Instead of asking only which control costs less, request the price difference for each complete configuration.

Other options include a fourth-axis rotary table, workpiece probing, automatic tool measurement, through-spindle coolant, a chip conveyor, and mist extraction. Select them according to the production problem you need to solve:

• If setup and alignment take too long, evaluate workpiece probing.

• If operators frequently turn and reclamp parts, evaluate a rotary table.

• If robotic loading is planned, confirm automatic doors, air blast, PLC communication, clamp-status feedback, and safety interlocks in advance.

7. Start with Your Parts to Identify the Right LiSN Configuration

You do not need to memorize every machine specification before making an inquiry. Start with three questions: What will you machine? How many parts do you need each month? Which dimensions and tolerances are critical?

Ask the quotation to explain why the machine is recommended, what is standard or optional, the complete delivery costs, and the proposed cutting-trial arrangements. Connecting each configuration choice to a production requirement will help you decide whether the machining center is a worthwhile investment.

FAQs

• What CNC machining center is suitable for a small machine shop?
  vmc850

• Do I need a 5-axis machining center?
  Is the product you are processing a multi-faceted product

• Is higher spindle speed always better?
  No, just choose the appropriate rotational speed for the product you are processing

• How can I verify machining accuracy before buying?
  We will conduct precise testing before shipment

• What additional costs should I budget for?
  Whether to process four or five axes

• How much does a VMC machining center cost per unit？
  VMC850，$2700unit.
