VMC1270 5 axis cnc machine for sale 8000rpm
VMC1270
Color
Quantity
Product Description:
The VMC270 is a semi closed-loop vertical machining center controlled by X, y and Z three-axis servo direct connection. All three axes are rolling linear guide rails. The guide rail has large load, wide span, high accuracy, compact and reasonable structure and external dimensions. The main shaft is driven by servo motor through synchronous belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of drilling, milling, boring, expanding, reaming, rigid tapping and other processes. It is suitable for the production of multiple varieties and small and medium batch products, and can meet the processing of complex and high-precision parts

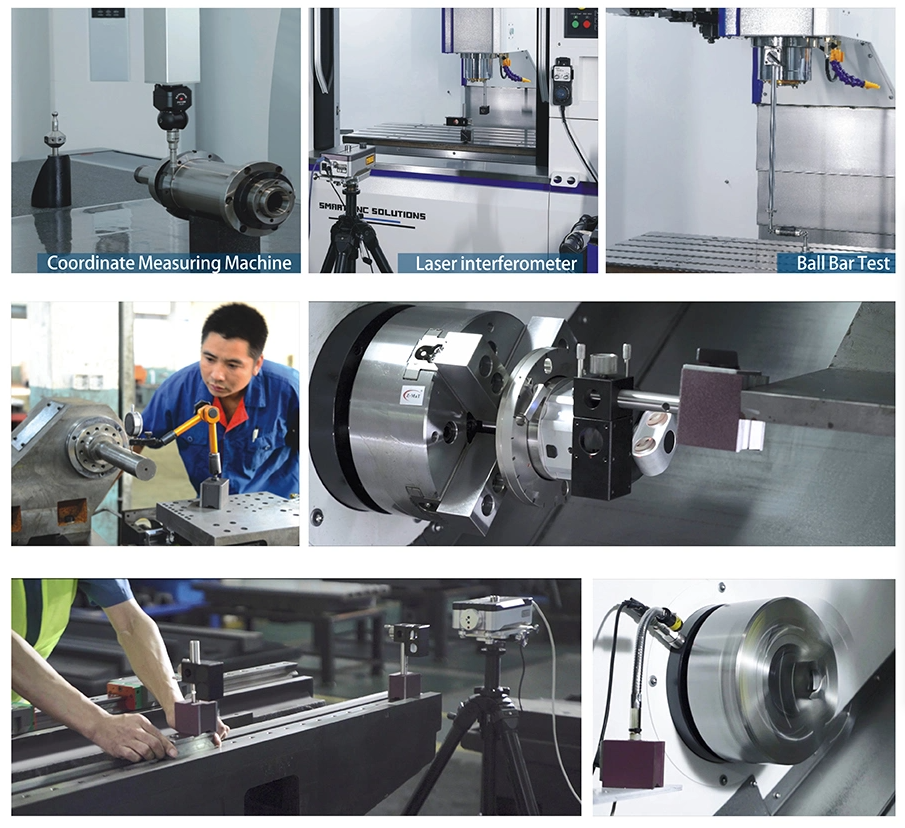

Detailed Photos：
Product Parameters：
Item | Specifications | Unit | VMC1270 | VMC1370 | VMC1380 |
Travel Range | X/Y/Z Axis Travel | mm | 1200/700/700 | 1300/700/750 | 1300/800/650 |
| Distance from spindle center to column track | mm | 752 | 752 | 752 | |
Control System | CNC System | / | Mitsubishi/Fanuc/Siemens/ | Mitsubishi/Fanuc/Siemens/ | Mitsubishi/Fanuc/Siemens/ |
Worktable | Worktable (WidthxLength) | mm | 1360x600 | 700x1400 | 800x1400 |
| Max Load Bearing Of Worktable | kg | 900 | 900 | 900 | |
Spindle | Spindle Hole Taper | type | BT50 | BT50 | BT50 |
Spindle Speed Range | r/min | 8000/10000 | 8000 | 8000 | |
| Motor | Spindle Motor | kw | 15 | 15 | 15 |
Accuracy | X/Y/Z Position Accuracy | mm | 0.005 | 0.005 | 0.005 |
| X/Y/Z Re-Position Accuracy | mm | 0.003 | 0.003 | 0.003 | |
| Machine Dimension | Machine Dimension | mm | 3680X2780X3100 | 2800x3800x2900 | 3630x2600x2640 |
FAQ：
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
