What is CNC VMC and HMC?

CNC stands for Computer - Numerical Control, which means these machines are controlled by computer programs to perform machining operations with high precision and repeatability. VMC and HMC are two common types of CNC milling machines, and here’s an introduction to them:

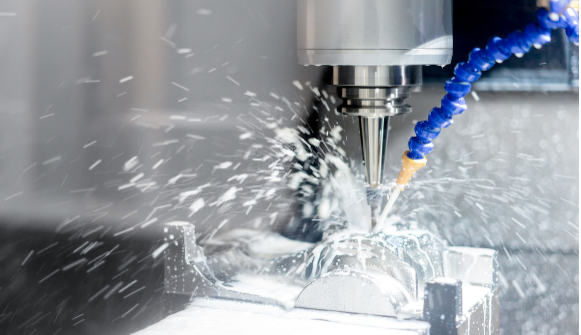

1. CNC Vertical Machining Center (VMC)

• Structure and Working Principle: In a VMC, the spindle axis is vertical. The cutting tool is mounted on a vertically - oriented spindle that moves up and down (Z - axis) while the workpiece is fixed on a table that can move horizontally in the X and Y axes. This vertical orientation allows for easy loading and unloading of workpieces, especially for relatively small - to - medium - sized parts. It is also convenient for operations such as drilling, face milling, and contouring on the top surface of the workpiece. For example, when machining a flat plate with some holes and slots on its top surface, a VMC can perform these operations in sequence according to the pre - programmed instructions.
• Applications: VM Cs are widely used in various industries. In the automotive industry, they can be used to machine engine components like cylinder heads, where operations such as machining combustion chambers and valve seats are required. In the mold - making industry, they are used to create molds for plastic parts. They are also suitable for producing small mechanical parts, such as gears and brackets, due to their flexibility and relatively compact size.

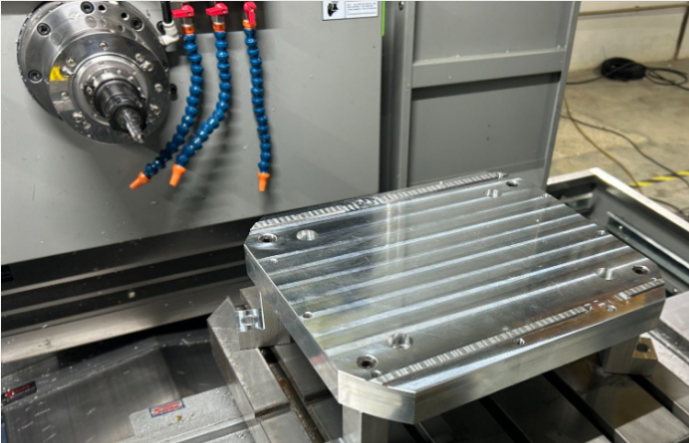

2. CNC Horizontal Machining Center (HMC)

• Structure and Working Principle: The main characteristic of an HMC is that its spindle axis is horizontal. The workpiece is usually mounted on a rotary table, which can rotate around one or more axes (such as the B - axis). This rotary table allows for multiple - sided machining without the need to re - clamp the workpiece. The cutting tool can access different surfaces of the workpiece from the side. For instance, when machining a cube - shaped workpiece with features on multiple sides, an HMC can machine all the required surfaces in one setup by rotating the workpiece on the rotary table and moving the cutting tool in the X, Y, and Z axes as well as other optional axes.
• Applications: HMCs are often used in industries where large and complex parts need to be machined with high efficiency. In the aerospace industry, they are used to manufacture large structural components such as wing spars and fuselage sections. In heavy - equipment manufacturing, they can machine parts for construction machinery like excavator booms and large - scale engine blocks for ships. Their ability to perform multi - sided machining in one setup reduces the overall machining time and improves the accuracy of parts by minimizing the errors caused by re - clamping.

 In summary, both CNC VMCs and HMCs are important types of machining equipment in modern manufacturing, each with its own structural characteristics, working principles, and application scenarios, and they play crucial roles in meeting different machining requirements in various industries.We have more than 20 years of producing CNC machines which can provide different machines.If you don't know what kind of machine is suitable for you, then come to LiSN. We have professional machine engineers to provide you with professional answers to your questions. We have a professional after-sales team, so you don't have to worry about after-sales issues with the machine.
