Factory Sale Automatic small batch cnc machining mini cnc milling machine vmcC640

VMC640
Quantity
Contact Now

Product Description

1.VMC (Vertical Machining Center) milling machines are advanced CNC tools designed for precision milling of vertical surfaces. Their vertical spindle orientation ensures stability and accuracy in machining.

2.Taiwan precision screw rod and Taiwan precision lock nut are adopted. The lead screw bearing adopts Japanese NSK bearing, which is directly connected with flexible coupling, with small back clearance, sensitive transmission and high precision.

3.Taiwan precision screw rod and Taiwan precision lock nut are adopted. The lead screw bearing adopts Japanese NSK bearing, which is directly connected with flexible coupling, with small back clearance, sensitive transmission and high precision.

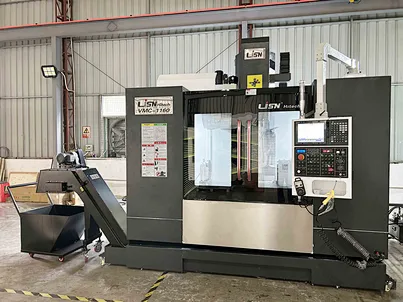

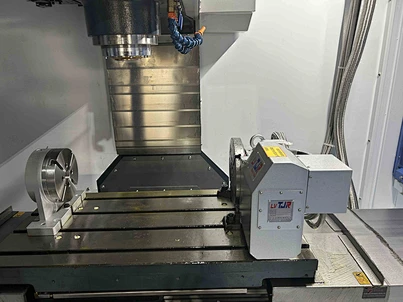

Detailed Photos



Product Parameters


Item
Specifications
        Unit		VMC640VMC960

Travel Range
X/Y/Z Axis Travel		mm650/430/450900/600/600

Distance From Spindle Nose To worktable		mm150-600120-720

Worktable		Worktable (WidthxLength) mm420x7001000x600

Max Load Bearing Of Worktable		kg200600

Spindle
Spindle Hole Taper		typeBT40BT40

Spindle Speed Range		r/min1200010000

Tool Magazine
Tool Capacity		tools2424

Accuracy
X/Y/Z Position Accuracy		mm0.0050.005

Machine Dimension
Machine Dimension		mm2300x2250x24502380x2650x2490

Machine Weight		kg34004500


​Standard Configuration for TV Series

Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun

Optional Configuration TV Series

NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler

FAQ

What is the maximum drilling and tapping capacity of the machine?

The machine is capable of drilling and tapping operations within a specified range, which can be customized based on requirements.

  1. Can the machine handle different types of materials?
    Yes, the CNC Drill Tap Machine is designed to handle a variety of materials, including metals, plastics, and composites.
  2. What is the maximum spindle speed of the machine
    The machine offers a high-speed spindle with adjustable speed settings to accommodate different drilling and tapping requirements.
  3. Is the machine equipped with a coolant system?
    Yes, the machine has a programmable coolant system that helps with chip evacuation and tool cooling during machining.
  4. Can the machine be integrated into an existing production line?
    Yes, the CNC Drill Tap Machine can be integrated into an existing production line or used as a standalone unit.
