6000/8000RPM Vertical Machining Center , VMC 1690 3 Axis Vertical CNC Machine
Product Description
The VMC-1690 is one of the products in the VMC series. The spindle, fuselage, base and overall structure of the machine are all made of high-strength and high-rigidity materials, which effectively avoid deformation and other problems in the process of processing. The spindle with high rotation can greatly improve the machining efficiency, and the characteristic of high rigidity also ensures the stability. High precision ball screw uses pre-stretching structure to ensure the three axis have good dynamic rigidity and strong thermal deformation resistance.
The VMC-1690 also has two version of the spindle you can choose which are 6000RPM version and 8000RPM version. You can decide which one you want base on your processing requirements.
Main Feature
- Overall rigidity of the machine is excellent
- Vibration absorbing materials
- High performance and precision spindle
- Worktable size: 1800mm * 900mm (Length * Width)
- Maximum loade capability of the worktable: 1500kg
- X/Y/Z axis travel distance: 1600/900/680
- Machine Weight: 12800kg
Product Parameters
| ITEM | MODELS | VMC1690 |
| WORKTABLE (WIDTH*LENGTH) | mm | 900*1800 |
| DISTANCE BETWEEN T SLOTS | mm | 5-22*165 |
| MAX LOAD BEARING OF WORKTABLE | kg | 1500 |
| X/Y/Z AXIS TRAVEL | mm | 1600/900/680 |
| DISTANCE FROM SPINDLE NOSE TOWORKBENCH | mm | 160-840 |
| SPINDLE HOLE TAPER | TB50 | |
| SPINDLE SPEED RANGE | r/min | 6000 / 8000 |
| TRANSMISSION OF SPINDLE BOX | BELT/DIRECT | BELT/DIRECT |
| SPINDLE MOTOR POWER | kW | 15 |
| X/Y/Z RAPID FEED SPEED | m/min | 18*18*18 |
| MAX CUTTING FEED SPEED | mm/min | 1-10000 |
TOOLS MAGAZINE CAPACITY | pcs | 24 |
FULL TOOLS MAX TOOL DIAMETER | mm | 240 |
| MAX.TOOLS ALLOWABLE WEIGHT | kg | 15 |
| MAX.TOOLS ALLOWABLE LENGTH | mm | 305 |
| X/Y/Z POSITION ACCURACY | mm | 0.008 |
| X/Y/Z RE-POSITION ACCURACY | mm | 0.005 |
| MACHINE DIMENSION | mm | 4110*2740*2900 |
| MACHINE WEIGHT | kg | 12800 |
Standard Configuration for VMC Series
1. Full Cover shield /
2. Self-lubrication system /
3. Working lights /
4. Warning lights /
5. Working condition warning lights /
6. M30 Self-powered electrical shutoff system /
7. Clean air gun/ Water Tank / Transformer /
8. Spindle air curtain and dust control system /
9. Electric box heat exchanger/
10.Worktable cleaning water gun
Optional Configuration for VMC Series

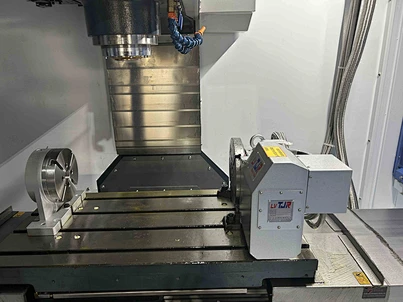

1. NC rotary table (4 Axis) /
2. CTS /
3. Tool detection system /
4. Automatic tool length measurement and damage detector /
5. Three axis optical ruler /
6,.Disc type oil-water separator /
7. Crawler iron filings carrier /
8. AJO
Product Detail
FAQ：
Q: What is the brand name of the CNC Vertical Machining Center?
A: The brand name of the CNC Vertical Machining Center is LiSN.
Q: What is the model number of the CNC Vertical Machining Center?
A: The model number of the CNC Vertical Machining Center is VMC850.
Q: What is the place of origin of the CNC Vertical Machining Center?
A: The place of origin of the CNC Vertical Machining Center is China.
Q: What certification does the CNC Vertical Machining Center have?
A: The CNC Vertical Machining Center has SGS certification.
Q: What is the minimum order quantity for the CNC Vertical Machining Center?
A: The minimum order quantity for the CNC Vertical Machining Center is 1.
Q: What are the packaging details for the CNC Vertical Machining Center?
A: The packaging details for the CNC Vertical Machining Center are wooden box.
Q: What is the delivery time for the CNC Vertical Machining Center?
A: The delivery time for the CNC Vertical Machining Center is 35 days.
Q: What are the payment terms for the CNC Vertical Machining Center?
A: The payment terms for the CNC Vertical Machining Center are T/T and L/C.
Q: What is the supply ability of the CNC Vertical Machining Center?
A: The supply ability of the CNC Vertical Machining Center is 1000 per year.
