Mitsubishi VMC Machine Advanced Machining for Diverse Industries CNC VMC640
Product Description
VMC Mitsubishi (Vertical Machining Centers) are renowned for their precision, reliability, and advanced technology. Widely used in aerospace, automotive, electronics, and mold-making industries, Mitsubishi VMCs excel in tasks like milling, drilling, and tapping on complex components such as engine parts, molds, and prototypes. Their high-speed performance, robust design, and intelligent controls make them ideal for improving efficiency and achieving superior-quality machining in modern manufacturing environments.

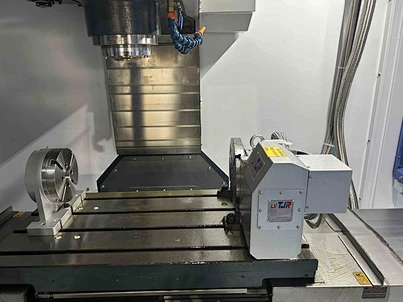

Detailed Photos
Product Parameters
| Item | Specifications | MODELS→ | VMC640 |
Travel Range | X/Y/Z Axis Travel | mm | 650/430/450 |
| Distance From Spindle Nose To worktable | mm | 150-600 | |
Worktable | Worktable (WidthxLength) | mm | 420x700 |
| Max Load Bearing Of Worktable | kg | 200 | |
| T-Slot（number of SlotxSlot WidthxPitch) | mm | 3x18x125 | |
Spindle | Spindle Hole Taper | type | BT40 |
| Spindle Speed Range | r/min | 12000 | |
Tool Magazine | Tool Capacity | tools | 24 |
| Motor | Spindle Motor | kw | 7.5 |
| Accuracy | X/Y/Z Position Accuracy | mm | 0.005 |
Machine Dimension | Machine Dimension | mm | 2300x2250x2450 |
| Machine Weight | kg | 3400 | |
Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at
