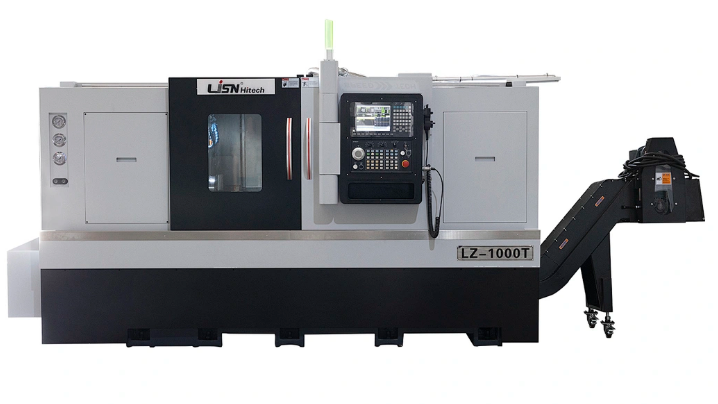

What Is a CNC Turning and Milling Machine?

A CNC Turning and Milling Machine is a multi-functional machining center that combines:

A CNC Turning and Milling Machine is an advanced multi-tasking machining center that integrates turning, milling, drilling, tapping, and other processes into a single platform. Controlled by a high-performance CNC system, it allows complex parts to be completed in one setup with outstanding precision.

All processes can be completed in a single setup, eliminating multiple clamping operations and improving dimensional accuracy.

This integration significantly enhances machining precision, efficiency, and production flexibility.

---

Key Advantages

✔ Multi-Process Integration

Complete complex parts in one setup, ensuring:

• Higher concentricity
• Better perpendicularity
• Reduced tolerance deviation

---

✔ Increased Production Efficiency

• Reduced setup time
• Shorter cycle times
• Lower labor costs
• Suitable for 24/7 automated operation

When integrated with robotic loading systems, the machine becomes a core unit in smart manufacturing cells.

---

✔ Exceptional Precision for High-End Industries

Ideal for:

• Robot joint modules
• Precision shafts
• Reducer housings
• Automotive transmission parts
• Aerospace structural components

Especially in robot joint module manufacturing, the machine can simultaneously perform turning and milling on complex geometries, significantly improving productivity and stability.

---

Typical Technical Specifications

(Customizable according to customer requirements)

Machining Capacity

• Max Turning Diameter: Ø300–600 mm
• Max Turning Length: 500–1500 mm
• Bar Capacity: Ø45–90 mm

Spindle

• Main Spindle Speed: Up to 4,000–6,000 rpm
• Spindle Motor Power: 11–22 kW
• Optional Sub-Spindle for dual-end machining

Milling Capability

• Live Tool Speed: Up to 6,000–12,000 rpm
• B-axis Rotation: ±120° (optional)
• Y-axis Travel: ±50–120 mm

Axis Travel

• X-axis: 200–400 mm
• Z-axis: 500–1500 mm
• C-axis: 0.001° indexing

Tool System

• 12–16 station servo turret
• Optional 24+ tool capacity
• Automatic tool changer (ATC)

Control System

• FANUC / Siemens / Mitsubishi CNC (optional)
• Full closed-loop control
• Industry 4.0 compatible

Automation Options

• Robotic loading & unloading integration
• Automatic bar feeder
• Chip conveyor system
• Online measurement system

---

Application in Robot Joint Module Manufacturing

Robot joint modules require:

• High concentricity
• Tight tolerance control
• Multi-surface machining
• Structural rigidity

Our CNC turning and milling solution enables:

• Turning outer diameter and milling holes in one setup
• Multi-axis machining for complex geometries
• Improved structural precision
• Reduced production lead time
• Stable mass production capability

Combined with automation systems, it significantly increases production efficiency and supports large-scale manufacturing.

---

Designed for Smart Factories

As global manufacturing shifts toward:

• Automation
• Digitalization
• Flexible production
• Cost optimization

CNC Turning and Milling Machines play a central role in building intelligent production lines.

They help manufacturers:

• Improve output
• Reduce labor dependency
• Increase consistency
• Enhance global competitiveness

---

Your Partner in Advanced Manufacturing

With high rigidity structure, precision control system, and flexible configuration options, our CNC Turning and Milling Machine delivers reliable performance for demanding applications.

Whether for robotics, automotive, or aerospace industries, this solution supports your factory’s upgrade toward smart manufacturing and long-term growth.
