What is a Milling Machine?

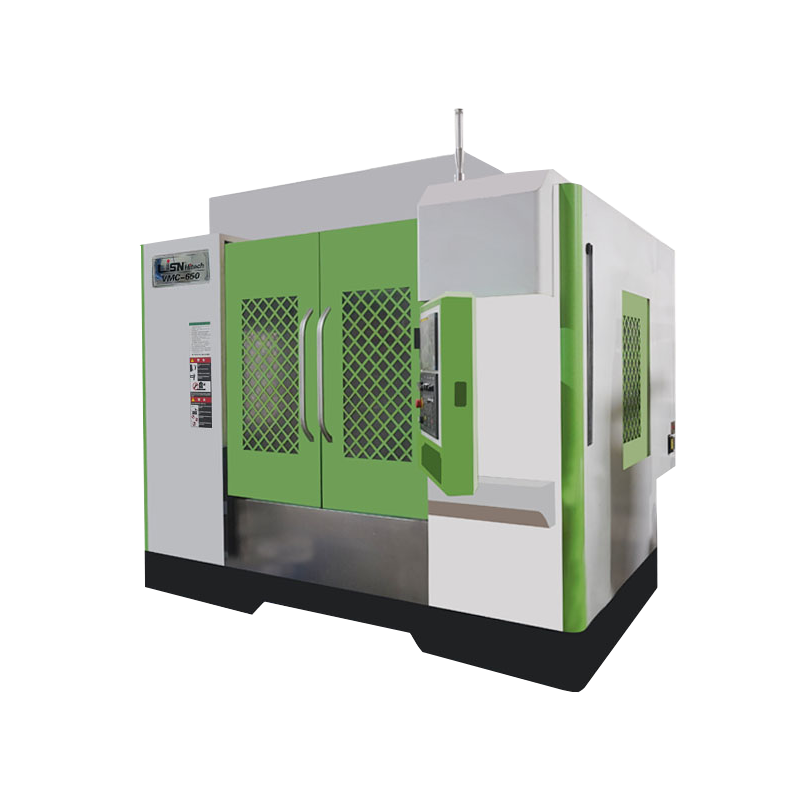

A CNC milling machine is a type of machine tool that uses computer - controlled cutting tools to remove material from a workpiece.
Here’s a more detailed breakdown:
1. Basic working principle
It operates based on pre - programmed instructions. These instructions can be created using specialized computer - aided design (CAD) and computer - aided manufacturing (CAM) software. The software generates a set of G - codes (a language used to communicate with the CNC machine) that define the path of the cutting tool, the speed at which it moves, the depth of the cut, and other parameters. The CNC system then controls the motors that move the cutting tool and the workpiece in multiple axes (usually three or more, such as X, Y, and Z axes) to perform the machining operations accurately.
Industries that Use Milling Machines
Aerospace Industry
The aerospace industry has extremely high requirements for the precision and quality of components. Milling machines play a crucial role in manufacturing various aerospace parts. Engine components such as turbine blades, which need to withstand high temperatures and high - speed rotations, are often machined using high - precision milling machines. Wing structures and landing gear components also require milling operations to achieve the necessary shapes and tolerances. The ability of milling machines to work with high - performance materials like titanium and composites makes them indispensable in aerospace manufacturing.
Automotive Industry
In the automotive industry, milling machines are used in the production of engine blocks, cylinder heads, and transmission parts. Engine blocks need to have precisely machined cylinder bores and surfaces for optimal engine performance. Milling machines can ensure the accuracy of these features, improving engine efficiency and reducing emissions. Additionally, custom - made prototypes and high - performance parts for sports cars and racing cars are often produced using milling machines to meet specific design and performance requirements.
Medical Industry
The medical field demands extremely high precision and biocompatibility in the production of medical devices. Milling machines are used to manufacture surgical instruments, such as scalpels, forceps, and drills, with high accuracy to ensure their functionality and safety. Implants, such as hip implants and dental implants, also require milling operations to shape them according to the patient’s specific anatomy. The ability to work with materials like stainless steel and titanium alloy, which are commonly used in medical applications, makes milling machines an essential tool in medical device manufacturing.
Types of Milling Operations
Face Milling
This operation is mainly used to create flat surfaces on the workpiece. The cutting tool, typically a face - mill with multiple inserts, rotates and moves across the top surface of the workpiece, removing material layer by layer to achieve a smooth and flat finish. It is often used in the initial stages of machining large workpieces or preparing surfaces for further operations.
Peripheral Milling
Peripheral milling is employed to machine the sides of the workpiece. It can be used to create various features such as slots, grooves, and profiles. For example, a slot - mill can be used to cut narrow slots in the workpiece, while a form - mill can be used to create complex profiles according to the design requirements.

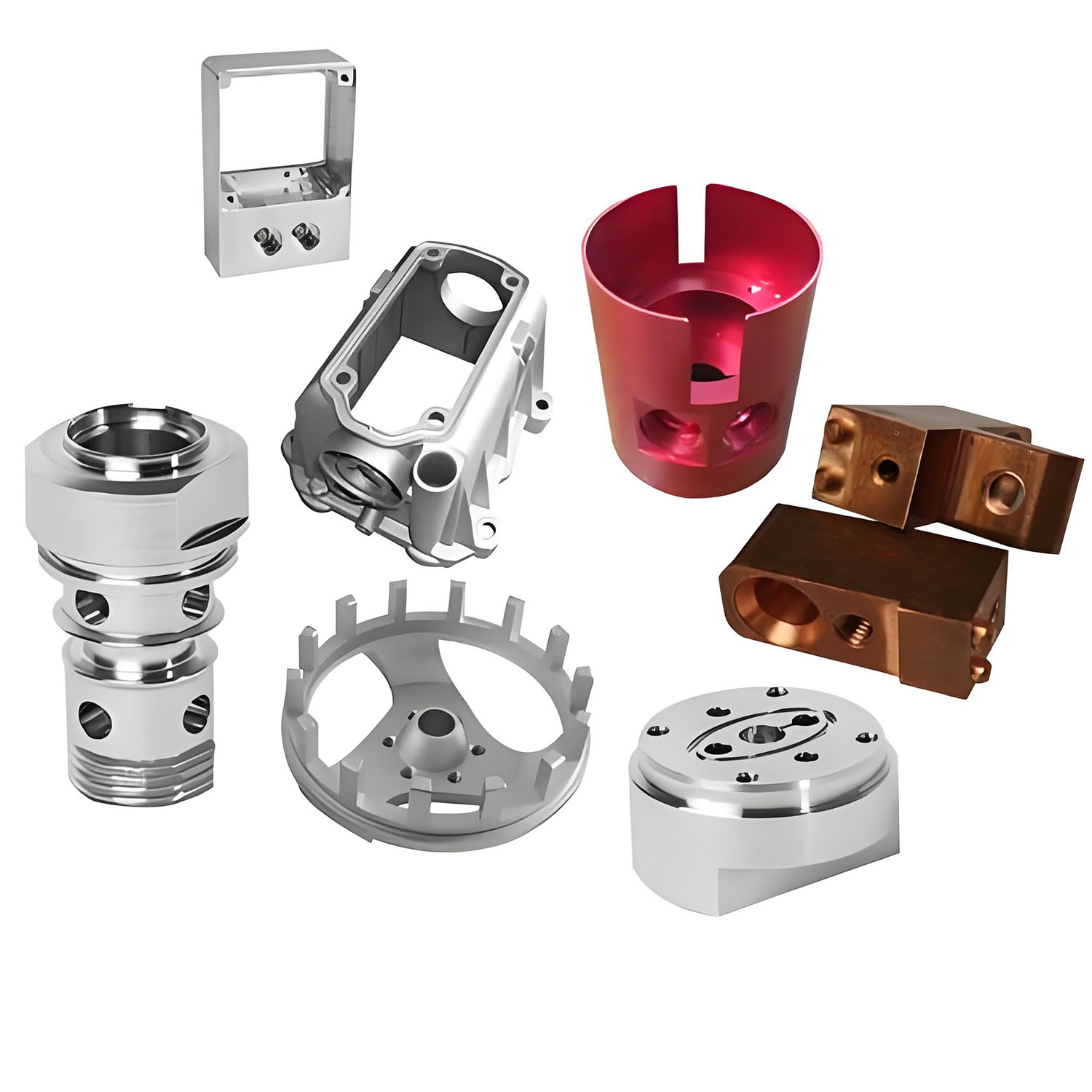

Common Products Manufactured by Milling Machines- Mechanical Parts: Gears are a prime example. Milling machines can cut the teeth of gears with high precision, ensuring smooth meshing and efficient power transmission. Shafts with keyways or splines are also commonly machined using milling operations.
- Consumer Products: In the production of consumer electronics, parts like smartphone casings (especially high - end, precision - made casings), laptop frames, and camera bodies may be partially or fully machined using milling machines. In the furniture industry, custom - made wooden parts with complex shapes can be created using milling machines equipped with appropriate cutting tools for woodworking.
- Aerospace and Automotive Components: As mentioned earlier, turbine blades for aircraft engines, engine blocks for cars, and many other critical components in these industries are products of milling machine operations.
In conclusion, milling machines are essential workhorses in modern manufacturing. Their versatility, precision, and ability to work with a wide range of materials make them indispensable in numerous industries for producing a vast variety of products, from the tiniest medical device components to large - scale aerospace structures.
