The Complete Guide to 5-Axis CNC Machines
Cultivated in CNC Machine Industry for 20+ years.
Specializing in CNC Milling, Drilling, Turning, Tapping, and so on...
Self-created Brand LiSN for 10+ Years
Introduction
As manufacturing industries continue to demand higher precision, faster production, and more complex part geometries, 5-axis CNC machines have become an essential technology in aerospace, medical, automotive, mold-making, and precision engineering sectors.
Compared with traditional 3-axis machining centers, a 5-axis CNC machine allows the cutting tool or workpiece to move simultaneously along five different axes, enabling manufacturers to create highly complex parts with fewer setups and greater accuracy.
In this guide, you'll learn:
- What a 5-axis CNC machine is
- How 5-axis CNC machining works
- Key advantages of 5-axis technology
- Industries and products that require 5-axis machining
- Important factors when buying a 5-axis CNC machine
- Typical 5-axis CNC machine prices
- How to choose the right machine for your business
What Is a 5-Axis CNC Machine?
A 5-axis CNC machine is a computer-controlled machining center capable of moving a cutting tool or workpiece along five different axes simultaneously.
The standard axes include:
- X-axis: Left and right movement
- Y-axis: Front and back movement
- Z-axis: Up and down movement
- A-axis: Rotation around the X-axis
- B-axis or C-axis: Rotation around the Y-axis or Z-axis
Unlike traditional 3-axis machines, which can only move linearly, a 5-axis CNC machine adds two rotational axes, allowing the cutting tool to approach the workpiece from virtually any direction.

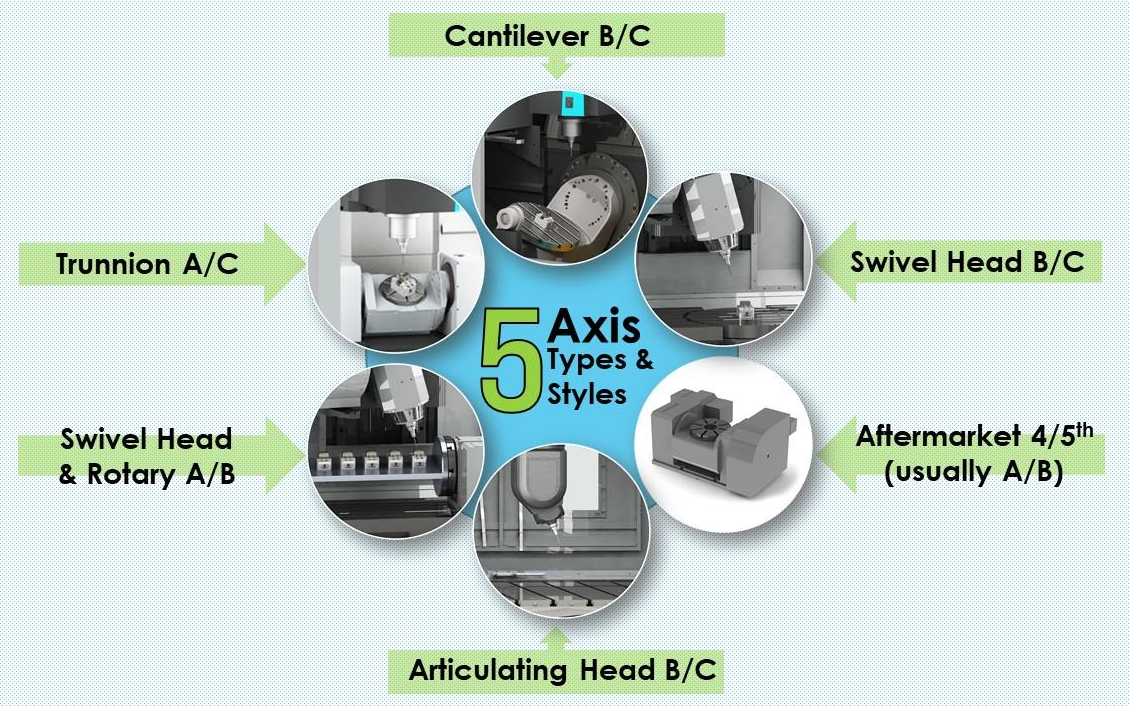

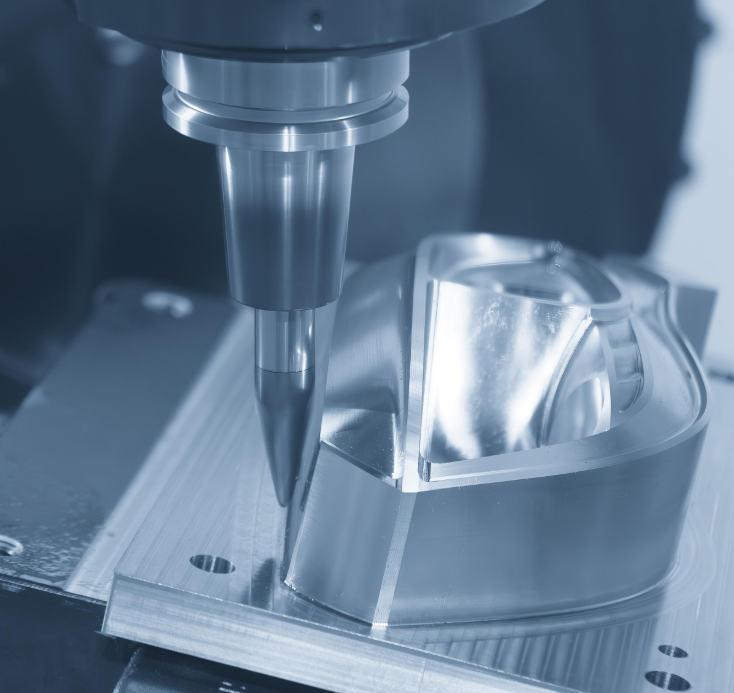

Axis Configuration
How Does a 5-Axis CNC Machine Work?
A 5-axis CNC machine operates using advanced CAM (Computer-Aided Manufacturing) software that generates toolpaths across five coordinated axes.
The machine continuously adjusts both the tool position and orientation while machining.
Example

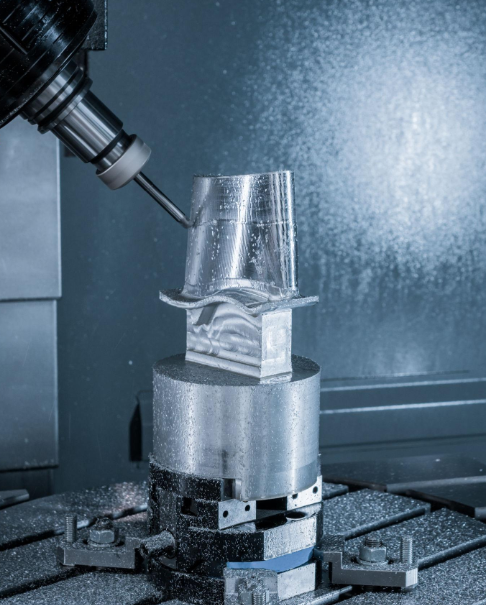

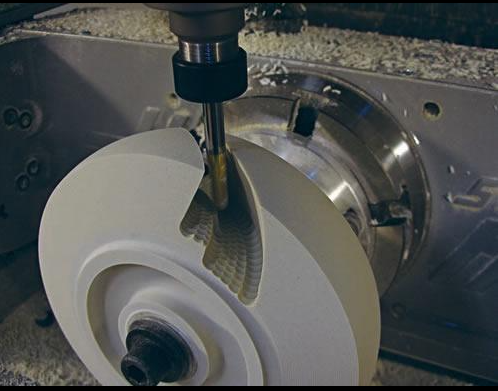

Consider machining an aerospace turbine blade:
- The workpiece is fixed once.
- The spindle moves along X, Y, and Z axes.
- The table or spindle simultaneously rotates on A and B/C axes.
- The cutting tool maintains the ideal cutting angle throughout the process.
- Complex surfaces are machined without repositioning the part.
Simultaneous vs. 3+2 Machining
Simultaneous 5-Axis
- All five axes move at the same time.
- Ideal for aerospace and medical parts.
- Highest efficiency and precision.
3+2 Positional Machining
- Two rotational axes position the part.
- Machining occurs using three linear axes.
- Lower programming complexity.
- More affordable solution.
5-axis machining can produce:
- Turbine blades
- Impellers
- Medical implants
- Aerospace structural components
- Precision molds
These parts are often impossible or extremely inefficient to manufacture using 3-axis machines.
2. Higher Precision
Because the workpiece remains fixed during most operations:
- Fewer setup errors
- Better dimensional accuracy
- Improved surface quality
Typical industries requiring this precision include aerospace and medical manufacturing.
What Products Are Manufactured with 5-Axis CNC Machines?
Aerospace Components
Examples:
- Turbine blades
- Engine casings
- Aircraft structural parts
- Compressor wheels

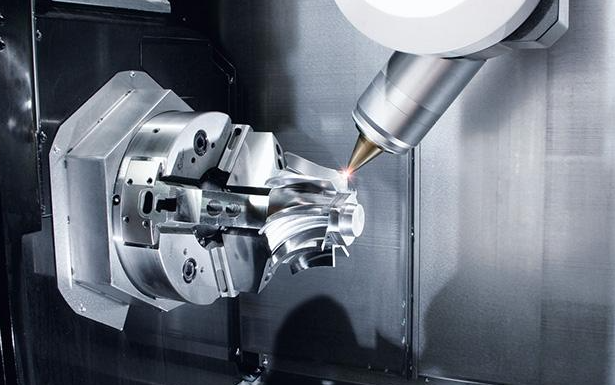

Aerospace Parts
Medical Devices
Examples:
- Orthopedic implants
- Knee replacements
- Hip implants
- Surgical instruments
Automotive Components
Examples:
- Racing engine parts
- Cylinder heads
- Transmission components
- High-performance prototypes
Mold & Die Manufacturing
Examples:
- Injection molds
- Die-casting molds
- Precision tooling
- Automotive molds
Energy Industry Components
Examples:
- Wind turbine parts
- Oil & gas components
- Power generation equipment
Which Companies Should Invest in a 5-Axis CNC Machine?
A 5-axis CNC machine is recommended for companies that:
Frequently Machine Complex Parts
If your products contain:
- Curved surfaces
- Deep cavities
- Undercuts
- Multi-angle features
5-axis machining can dramatically improve efficiency.
How Much Does a 5-Axis CNC Machine Cost?
The price of a 5-axis CNC machine varies significantly depending on size, configuration, brand, and performance.
| Machine Type | Typical Price Range |
|---|---|
| Entry-Level 5-Axis CNC | $80,000 – $200,000 |
| Mid-Range Industrial Machine | $200,000 – $500,000 |
| High-End Aerospace Grade Machine | $500,000 – $1,500,000+ |
| Large Gantry 5-Axis Machine | $1,000,000 – $5,000,000+ |
Additional Costs
Consider:
- CAM software licenses
- Tooling systems
- Probing systems
- Operator training
- Installation
- Maintenance
Total ownership costs can exceed the machine purchase price over its lifecycle.
5-Axis CNC vs. 3-Axis CNC
| Feature | 3-Axis CNC | 5-Axis CNC |
|---|---|---|
| Complex Geometry | Limited | Excellent |
| Number of Setups | Multiple | Minimal |
| Surface Finish | Good | Superior |
| Machining Speed | Moderate | High |
| Precision | Good | Excellent |
| Automation Potential | Moderate | High |
Future Trends in 5-Axis CNC Machining
Emerging technologies include:
- AI-assisted toolpath optimization
- Digital twins
- Smart factory integration
- Real-time process monitoring
- Automated tool management
- Hybrid additive and subtractive manufacturing
Manufacturers adopting these technologies can gain significant competitive advantages.
Conclusion
A 5-axis CNC machine represents one of the most powerful and versatile manufacturing solutions available today. By enabling simultaneous movement across five axes, these machines produce highly complex parts with greater precision, improved surface quality, and significantly reduced setup times.
For industries such as aerospace, medical devices, automotive, energy, and mold manufacturing, investing in a 5-axis CNC machine can dramatically increase productivity and profitability.
Before purchasing, businesses should carefully evaluate:
- Part complexity
- Production volume
- Accuracy requirements
- Machine configuration
- Software compatibility
- Service support
- Total cost of ownership
Choosing the right 5-axis CNC machine ensures long-term manufacturing efficiency, higher-quality products, and a stronger competitive position in today's advanced manufacturing market.
