What is cnc lathe machine?
What is cnc lathe machine?A CNC lathe machine, short for Computer Numerical Control lathe, is a precision manufacturing tool used to shape rotating workpieces. It automates the machining process via pre-programmed computer commands, replacing manual operation of traditional lathes.

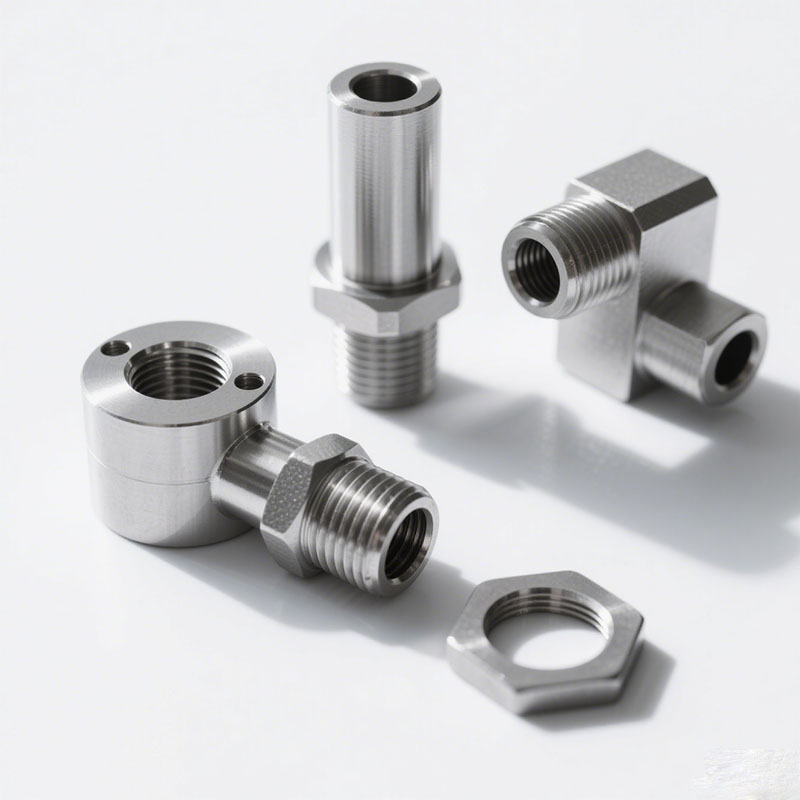

In operation, the workpiece is clamped in a chuck, which is driven by a spindle to spin at set speeds. Cutting tools, mounted on a turret, move along X (horizontal) and Z (longitudinal) axes according to G-code programs. This controlled movement removes excess material, creating cylindrical, conical, or threaded parts like shafts, bolts, or bushings.
Key components include the CNC control unit (interprets programs), spindle (drives rotation), chuck (secures workpieces), turret (holds tools), and feed mechanisms (ensures precise tool movement). Unlike manual lathes, it delivers consistent accuracy—often to microns—and reduces human error.
Widely used in automotive, aerospace, medical, and electronics industries, CNC lathes handle metals (steel, aluminum), plastics, and composites. Their advantages include high production efficiency, 24/7 operation capability, and easy replication of complex parts. As a core tool in modern manufacturing, they enable mass production of high-quality components vital for.
CNC Lathe Application Cases Across Industries
1. Aerospace: Turbine Blade Machining
In aerospace manufacturing, CNC lathes play a critical role in producing high-precision components like stainless steel scroll blades for turbine systems. A case study by Yixin Precision demonstrates how 5-axis CNC technology tackled the challenges of machining SUS304 stainless steel—known for its poor machinability and heat deformation issues. By optimizing tool paths, using coated carbide tools, and implementing real-time monitoring, the process achieved ±2μm dimensional accuracy and a surface roughness of Ra 0.2μm. The 180-hour machining cycle included roughing, heat treatment, and precision finishing, resulting in blades with unbalanced weight within 0.09gmm, essential for high-speed turbine operation .
2. Medical: Implant Manufacturing
CNC lathes are indispensable for producing medical implants requiring exceptional biocompatibility and precision. Titanium alloy artificial joints and dental
implants rely on CNC's micron-level repeatability to meet ISO 13485 standards. The automated process minimizes human error, ensuring consistent surface finishes that reduce bodily rejection risks. For example, CNC-machined orthopedic implants achieve dimensional tolerances within ±0.005mm, far exceeding the accuracy of traditional manual methods. This precision enables customized fitting for patients while maintaining batch production efficiency .
3. Electronics: Micro-Connector Molds
In electronics, CNC lathes like the JinYi CNC-400S excel at machining micro-connector molds for smartphones and consumer electronics. Equipped with high-speed spindles and intelligent compensation systems, these machines reduced production time for connector cavities from 4 hours to 2.5 hours per unit. The integration of "low-loss pulse mode" and 3-axis linkage ensures hole position tolerances within ±0.005mm for 0.2-3mm micro-holes. Such precision boosted yield rates from 82% to 99% for a major electronics manufacturer, highlighting CNC's role in miniaturized component production .
4. Automotive & Mold Making
Automotive mold manufacturing leverages CNC lathes for complex curved surfaces in car body panel molds. New-generation CNC systems with multi-axis synchronization handle high-alloy die steels, achieving mirror-like finishes without secondary polishing. The machines' rigid cast iron beds and servo-driven feeds maintain ±0.002mm positioning accuracy even during 72-hour continuous operation. This capability streamlines production of engine shafts, gear hubs, and suspension components, where consistent precision directly impacts vehicle performance and safety .
These cases illustrate CNC lathes' versatility—from aerospace-grade metallurgy to life-saving medical devices—proving their status as the backbone of precision manufacturing.
