What Is The Machining Center Structure

In the landscape of modern manufacturing, CNC (Computer Numerical Control) technology has revolutionized the way parts are produced. At the heart of many advanced manufacturing processes lies the machining center, a highly sophisticated CNC machine designed for versatility and efficiency. Understanding the structure of a machining center is key to grasping how it performs multiple operations with precision. This blog will delve into the intricate structure of a machining center, exploring its key components and how they work together.

The Foundation: An Overview of Machining Center Structure

A machining center is a complex piece of equipment that integrates several essential components, all under the control of a CNC system. Its structure is engineered to enable seamless execution of various machining tasks, such as milling, drilling, boring, and tapping, within a single setup. The design focuses on providing rigidity, accuracy, and the ability to handle a wide range of workpieces. The main components of a machining center include the spindle system, automatic tool changer, worktable, axis configuration, and the CNC control system.

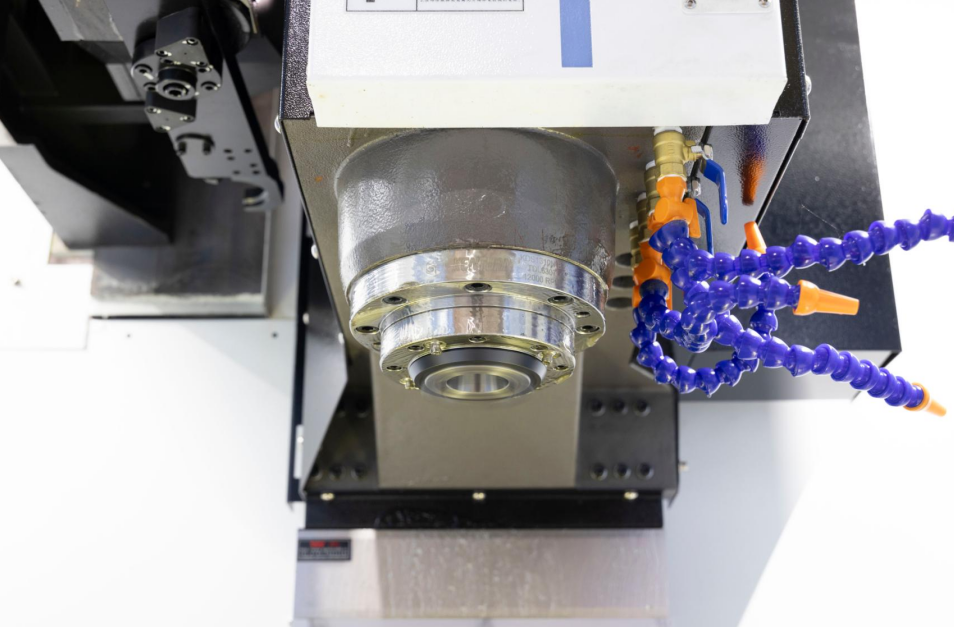

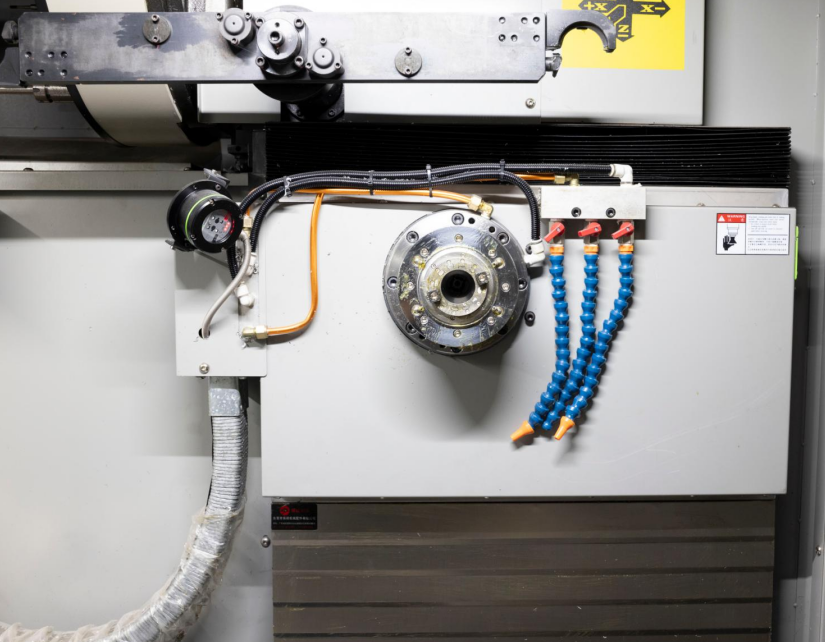

The Spindle System: The Heart of the Machining Center

The spindle system is arguably the most critical part of a machining center. It holds the cutting tool and rotates it at high speeds, facilitating the removal of material from the workpiece. In a CNC machining center, the spindle is powered by a robust motor capable of delivering a wide range of rotational speeds, often from a few hundred to tens of thousands of revolutions per minute (RPM). High-performance spindles are designed to maintain stability even at high speeds, ensuring smooth and precise cutting operations.

Advanced spindle systems also feature automatic tool clamping and unclamping mechanisms. These mechanisms work in tandem with the automatic tool changer, allowing for quick and secure tool changes. This is crucial for the machining center to switch between different machining tasks efficiently, as each operation may require a specific type of cutting tool.

Automatic Tool Changer (ATC): Enhancing Versatility

The Automatic Tool Changer is a defining feature of a machining center. It serves as a storage unit for a diverse array of cutting tools, typically ranging from a dozen to over a hundred, depending on the size and complexity of the machine. When the CNC program calls for a tool change, the ATC swings into action.

Using a combination of mechanical and electrical components, the ATC precisely retrieves the required tool from its storage location and replaces the current tool on the spindle. This entire process occurs within seconds, minimizing downtime between operations. The ATC's ability to store and quickly access multiple tools gives the machining center the flexibility to perform a wide variety of machining tasks without manual intervention, significantly boosting productivity.

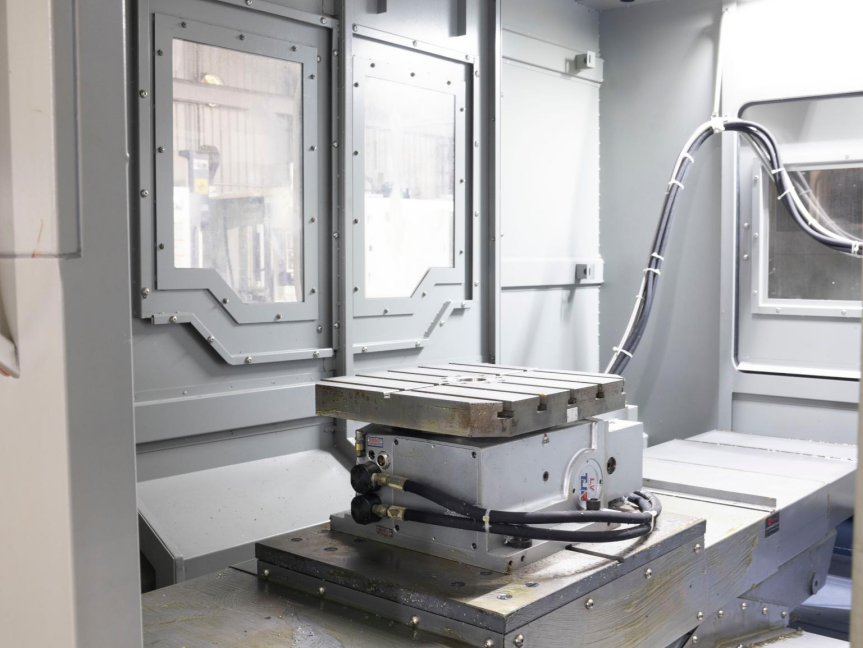

Worktable and Axis Configuration: Enabling Precision Movement

The worktable of a machining center provides a stable platform for holding the workpiece during machining. It is designed to withstand heavy loads and maintain accuracy even under the forces generated during cutting operations. The worktable can move along multiple axes, with the most common being the X, Y, and Z axes, which control linear movement in three-dimensional space.

In more advanced machining centers, additional rotary axes, such as the A, B, or C axes, may be incorporated. These rotary axes allow for the machining of complex geometries that would be difficult or impossible to achieve with just linear movement. The movement of these axes is controlled by the CNC system, which uses servo motors and precision feedback devices, like encoders, to ensure accurate positioning of the cutting tool relative to the workpiece.

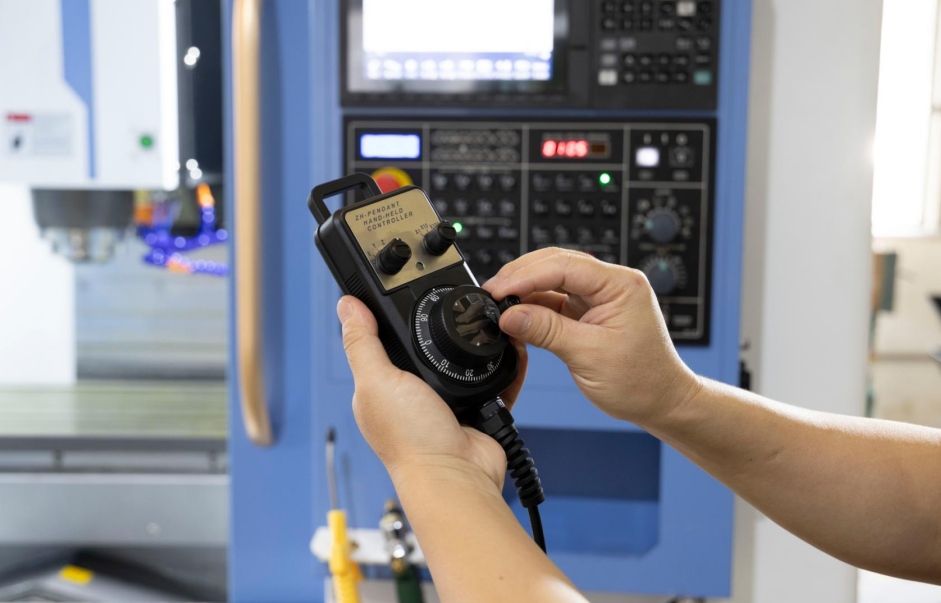

CNC Control System: The Brain of the Machining Center

The CNC control system acts as the brain of the machining center. It reads and interprets the G-code programs generated by CAD/CAM software. These programs contain detailed instructions for every aspect of the machining process, including tool paths, spindle speeds, feed rates, and tool change sequences.

The CNC control system sends electrical signals to the various components of the machining center, coordinating their movements to execute the programmed operations. Modern CNC control systems are equipped with powerful processors and user-friendly interfaces. They offer features such as real-time monitoring of the machining process, the ability to make on-the-fly adjustments, and advanced error detection and compensation algorithms, all of which contribute to the high precision and reliability of the machining center.

Conclusion

The structure of a machining center is a testament to the ingenuity of modern engineering and CNC technology. Each component, from the spindle system to the CNC control system, plays a vital role in enabling the machining center to perform multiple machining operations with speed, precision, and flexibility. Whether in the automotive, aerospace, or other manufacturing industries, understanding the structure of machining centers helps us appreciate how these remarkable CNC machines drive innovation and efficiency in production processes.
