Multi functional high-precision 4 Axis cnc mill drill machine with CE
Product Description
The CNC mill drill machine has a safe and convenient operation design. The back of the machine has a box-shaped design and it is equipped with a tank collecting box. The humanized space design and the wide operating door make the loading and unloading of the workpiece very convenient. This machine is also equipped with easy to use operating panel and hand wheel and high efficiency base chip washing system, making the work more efficient.
The CNC mill drill machine 4 axis TV-600 is a high performance machine with high speed and high precision. This machine is an automatic CNC machining center integrated with the functions of milling, boring, drilling and tapping, the headstock of this machine adopts hanging structure to enhance the machine rigidity. It can be used to machining metal parts such as aluminum, steel and iron. All cstings have been secondary tempered to provide high rigidity for the overall machine. It adopts timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated. It also adopts direct coupling connection, with excellent transmission rigid, high precision and stability.

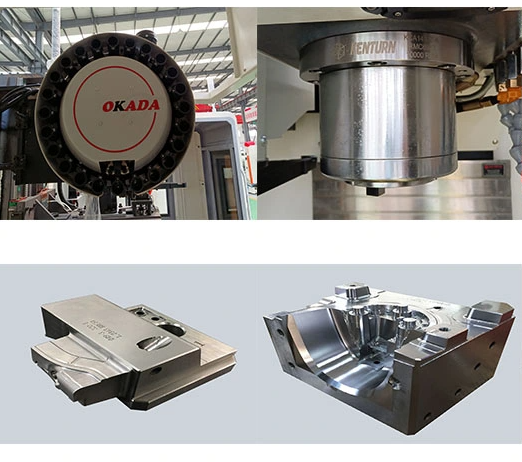

Detailed Photos：
Product Parameters：
| Item | Specifications | Unit | TV500 | T600 |
Travel Range | X/Y/Z Axis Travel | mm | 500/400/300 | 620/420/330 |
| Distance From Spindle Nose To worktable | mm | 130-450 | 150-480 | |
Worktable | Worktable (Width XLength) | mm | 650 X400 | 700x420 |
Max Load Bearing Of Worktable | kg | 200 | 250 | |
T-Slot（number of SlotxSlot WidthxPitch) | mm | 3 x 14 x 125 | 3x14x120 | |
Spindle | Spindle Hole Taper | type | BT30 | BT30 |
Spindle Speed Range | rpm | 20000 | 20000 | |
Feedrate | Max Cutting Feed Speed | mm/min | 1-8000 | 1-8000 |
| Tool Magazine | Tools Magazine Capacity | pcs | 21 | 21 |
Accuracy | X/Y/Z Position Accuracy | mm | ±0.005/300 | ±0.005/300 |
| Machine Dimension | Machine Weight | kg | 3000 | 3000 |
